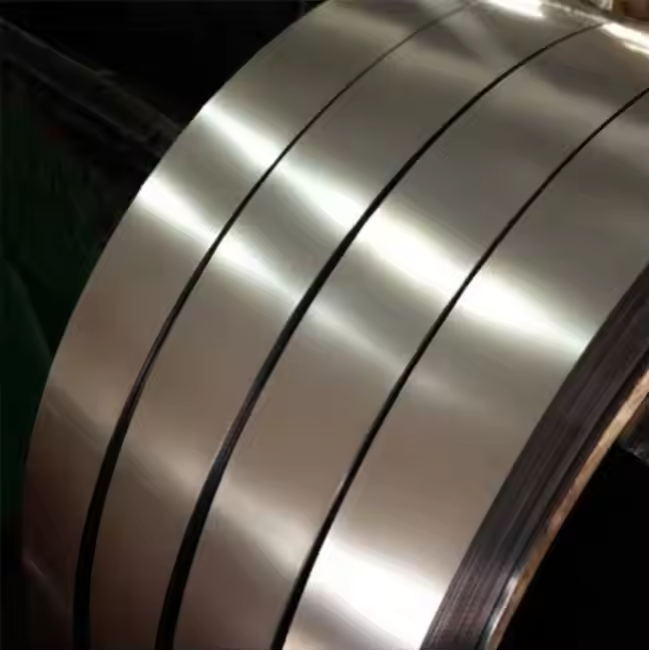

Demagnetizing strip cold rolled precision

ZXS demagnetizing strips are cold rolled precision products.
Thickness range from 0.02 ~ 0.9mm, widths up to 48”.

Ask Free Quote | Get Free Strips Samples

*indicates a Required Field

Product Descripition

Standards

JIS-G4313 JIS-G4305 JIS-G4305 ASTM-A240 EN10088

Products features

EFFECTIVE ANTI-MAGNETIC INTERFERENCE | GOOD CORROSION RESISTANCE

ZXS has more than ten years process experience in demagnetization, it mastered the demagnetization process of austenitic hard stainless steel,and support customized production of low magnetic and weak magnetic in hard stainless steel strips, to meet the requirements of end customers.

Fields of application

1. Medical devices: The corrosion resistance and non-magnetism of non-magnetic stainless steel tape make it an excellent medical device material.

2. Electronic products: non-magnetic stainless steel tape can effectively resist magnetic field interference, so it has been widely used in electronic products

3.Other fields: non-magnetic stainless steel belts can also be used in aerospace, automobile manufacturing, building materials and other fields.

Available Dimensions & Ranges

METRIC DIMENSIONS
Thickness(mm)	Width (mm)	Coil ID(mm)
0.02 -- 0.08	1.5 -- 649	200 -- 300 -- 400 -- 500
0.09 -- 0.3	1.5 -- 649	200 -- 300 -- 400 -- 500
0.4 -- 0.5	1.5 -- 649	200 -- 300 -- 400 -- 500
0.6 -- 0.8	1.5 -- 649	200 -- 300 -- 400 -- 500

Surface Finishing

#1D – Cold Rolled, annealed and pickled

#2D– Cold rolled, annealed, pickled, or annealed and skin passed with dull rolls.

#1B – Cold rolled on polished rolls, annealed and pickled

#2B – Cold rolled on polished rolls, annealed, pickled, and skin passed on polished rolls

#1BA - Cold rolled on polished rolls, annealed in a protective atmosphere retaining the as-rolled surface appearance

#2BA – Same as

#1BA except the annealed strip receives a final skin pass.

#1CBA – Dull cold rolled and annealed in a protective atmosphere

#1 Bright Hardened - Martensitic grades cold rolled on polished rolls and heat treated in a protective atmosphere, retaining the as-rolled surface appearance.

#2TR – Cold rolled to a temper specified by the customer Special finished are available upon request.

*** Not all finishes are available in all alloys --- Contact ZXS Sales for more information.

Slitting Edges

ZXS stainless strip is available within equipment limitations with any of these edges:

No. 1 – Round or square produced by machining or rolling

No. 2 – Produced by slitting

No. 3 – Essentially square produced by shaving or rolling after slitting

Product properties &performance

Steel Grade	Delivery condition	Mechanics Performance
Steel Grade	Delivery condition	Yield strength（Mpa）	Tensile strength(Mpa)	Elongation(%)	Hardness HV
SUS304	ANN	205	520	48-57	200
	1/4H	390	725	35	220-250
	1/2H	470	780	28-33	250-310
	3/4H	665	930	18-21	310-370
	H	880	1130	13-14	370-420
SUS301	ANN	205	520	above 40	200
	1/4H	450	780	Min25	250-310
	1/2H	510	930	20-25	310-370
	3/4H	745	1130	15-18	370-430
	H	1030	1320	10	430-490
	EH	1275	1570	3	490-520
	SHE	1450	1740		560-600
SUS316L	ANN	205	250	Min40	200
	1/4H	350	600	Min35	200-250
	1/2H	470	700	Min6	250-310
	3/4H	665	880	Min35	310-360
	FH	880	1100		min360
201	ANN	205	520	Min35	200
	1/2H	510	930	Min10	310-370
	3/4H	745	1130	Min5	370-430
	FH	1030	1320		430-490
	EH	1275	1570		490-520
SUS430	ANN				200

Remark：301-According standard: JIS-G4313 ; 304-According standard: JIS-G4305 ; 316L-According standard : ASTM-A240

Steel Grades

Titanium Alloys	GRADE 5 TITANIUM TI-6AL-4V UNS R56400	GRADE 6-2-4-2 UNS R54620 UNS R54621
Titanium Alloys	TITANIUM GRADE 9 TI3-2.5 UNS R58153	GRADE 15-3-3-3 UNS R58153
Nickel based Alloys	INCOLOY 800 UNS08800	INCONEL 600 ALLOY 600 UNSN06600	NISPAN-C 902 UNS N09902
Nickel based Alloys	INCOLOY 825 ALLOY 825 UNS N08825	INCONEL 600 ALLOY 600 UNSN06600	PERMANICKEL 300 UNS N03300
Austenitic	201 STAINLESS STEEL UNS S20100	301 STAINLESS STEEL UNS S30100	301SI STAINLESS STEEL UNS S30116
	302 STAINLESS STEEL UNS S30200	303 STAINLESS STEEL UNS S30300	304 STAINLESS STEEL UNS S30400
	304L STAINLESS STEEL UNS S30403	305 STAINLESS STEEL UNS S30500	316 STAINLESS STEEL UNS S31600
Ferritic	430 STAINLESS STEEL UNS S43000	430LI STAINLESS STEEL UNS S43000	434 STAINLESS STEEL UNS S43400
Ferritic	444 STAINLESS STEEL UNS S44400
Duplex	DUPLEX ALLOY 2304 UNS S32304	DUPLEX ALLOY 2205 UNS S31803 UNS S32205	DUPLEX ALLOY 2507 UNS S32750

Packaging

ZXS adopts standard export shipping packaging and bundles steel strips according to the size of the stainless steel strips. we can customize the packaging according to the requirements of customers.
